SL Automatic High Speed

The SL Automatic High Speed Stretch Wrapper comes equipped with Lantech’s patented LeanWrap® features which are designed to maximize productivity and performance:

  • Load Guardian®: Creates, maintains and delivers safe-to-ship loads every time.
  • Pallet Grip®: Locks your load to the pallet.
  • Metered Film Delivery® System: Wraps your loads tighter with less film.
  • Load Seeking Clamp 4.0: Reduces film breaks.

Available Options

LINC® | Lantech Intelligent Network Connection®

Upgrade your system with LINC® to monitor machine data and performance from anywhere. LINC® utilizes an ultra-secure connection allowing customers to react to issues before they become problems.

The ARC - Auto Roll Change Option
A carousel that holds up to 3 rolls of film and threads it to the film delivery system, enabling the wrapper to automatically change film rolls. The ARC provides separate access gates that allows film loading while the wrapper is in fully automatic operation. Design supports 1321 mm (52") effective width conveyor only, and is not compatible with temperatures of 0 C (32 F) and below.

6,000 LB Capacity Conveyor
2722 kg (6,000 lb) capacity for Lantech supplied base system. Available in 1524 mm (5′) sections, 3048mm (10′) and 3658 mm (12′) wrap zone sections. 76mm (3″) diameter rollers on 95.25 mm (3-3/4″) centers.

Cold Package
Cold Package option allows efficient operation of stretch wrapper in an environment where the temperature range is -1 to -13 degrees Celsius (+31 to +10 degrees Fahrenheit).

750 mm (30") Metered Film Delivery System
For customer applications where 750mm (30”) wide film is used.

25 RPM Package
Wrap arm rotation is increased to 25 RPM. Includes additional fencing, visual barriers (Yellow Railroad Gates) at the infeed and exit transition, and a larger machine frame.

35 RPM Package
Wrap arm rotation is increased to 35 RPM. Includes additional fencing, visual barriers (Yellow Railroad Gates) at the infeed and exit transition, and a larger machine frame.

Top Sheet Dispenser
Two to four mil poly film, 2032 mm (80") wide is automatically applied over the top of load for moisture and dust protection. In-line top sheet dispenser model applies and secures sheet of film over load as it indexes into the wrap zone with no interruption to the wrapping cycle. Mid-wrap top sheet dispenser applies and secures sheet of film over top of load during the wrapping cycle. Load is protected with five-sided coverage.

Conveyor Sections
Available in 1524mm (5') sections and 3048mm (10') and 3658 mm (12') wrap zone sections. Close-spaced and tight-spaced conveyor rollers. Standard and non-standard pass heights. Includes safety fencing and additional safety photocells mounted on the safety shield.

Additional Wrap Height Capacity
For wrapping loads which exceed the 2032 mm (80") wrap height capacity of the standard system. Will handle loads up to 2794 mm (110") tall. Increases total operating height to 5486 mm (216") at standard pass height.

Specifications

Performance

Production Speed

Up to 110 loads/Hr (depends on speed package)

Maximum Load Size

1372 mm L x 1219 mm W x 2032 mm H
(54" L x 48" W x 80" H)

Minimum Load Size

914 mm L x 914 mm W x 686 mm H
(36"L x 36"W x 27"H)

Maximum Load Weight

Conveyor Capacity

Performance Features

Pallet Grip®

Standard

Load Guardian

Standard

Standard Pre-Stretch

250% (100-300% Available)

Film Capacity

254 mm Diameter, 508 mm Width
(10"D x 20" W)

Film Delivery System

Power Roller-Stretch Plus

Automation Unit - Film Clamp

Load Seeking Clamp® and Reach Arm
with Pulsed Hot Wire

Load Handling

Wrap Arm Drive

DC Driver Motor Control

Wrap Arm Speed

Up to - 35 RPM (depends on speed package)

Weight and Size

Approx. Shipping Weight

3130 kg (6900 lbs)

Service Requirements

Pneumatic

85-142 lpm @ 6 Bar, 3-5 cfm @ 80 Psi Clean, Dry Air

Dedicated Electric Service Req. US

460V-30 Amp-60Hz, 3 Phase Wye w/Ground

Dedicated Electric Service Req. EU

3L-PE-400V-50Hz (No Neutral)

Enclosure

NEMA 12 with Disconnect and Safety Lock-out

Control

PLC with HMI

Warranty

Warranty Duration

3 Years, Unlimited Cycles

LINC®️ | Lantech Intelligent Network Connection® Option

LINC®️ – an IoT solution is now available as an option on all LeanWrap Automatic machines.

LINC allows subscribers to monitor machine data and performance in real time, from anywhere. It provides actionable intelligence and advanced analytics to support maintaining and improving system uptime, productivity, load quality, and cost, allowing customers to react to issues before they become problems.

Learn More

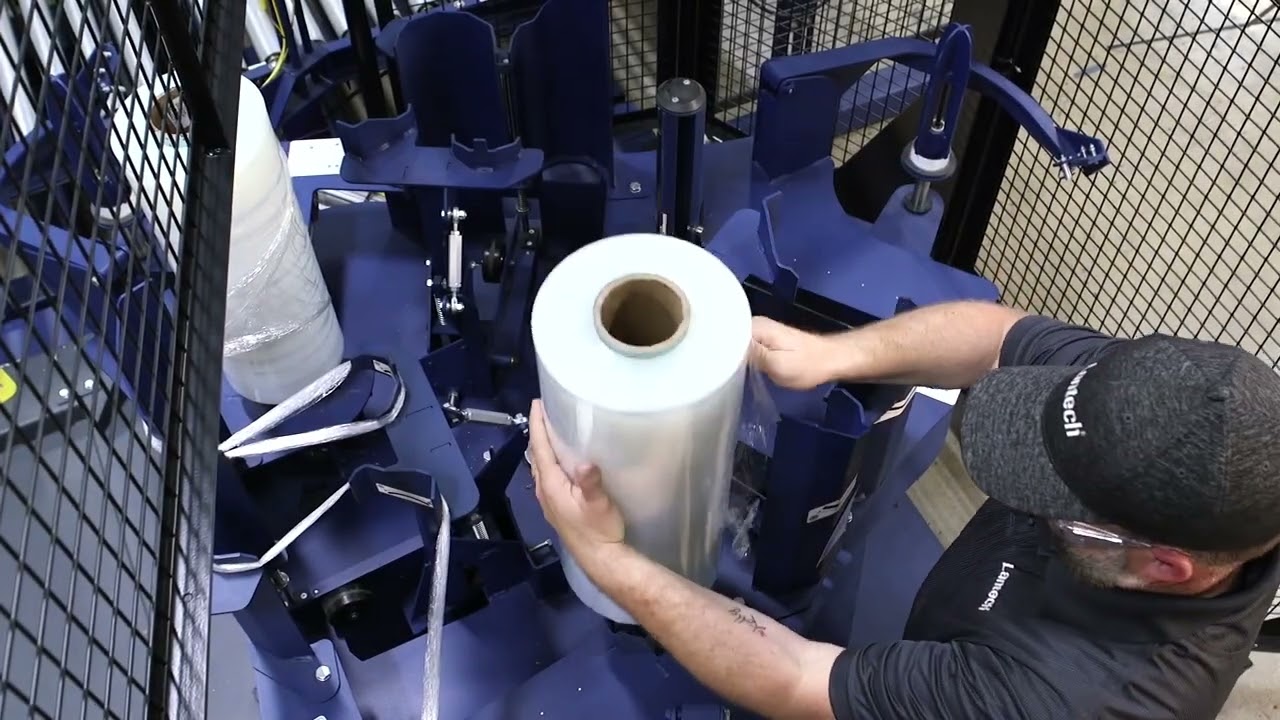

Automatic Roll Change (ARC) Option

ARC reduces the need for operator touches caused by film exhaustion & film breaks by holding and replenishing up to 3 additional rolls of film.

Film breaks & film exhaustion are the #1 cause of machine stops

  • ARC virtually eliminates these stops

Film breaks & film exhaustion cause downtime

  • Downtime creates stress and end of line chaos
  • Operator response is reactive

ARC allows operator interaction to be proactive

  • Film replenishment without shutting down the machine while keeping the operator safely out of the wrap zone
  • Allows replenishment to occur anytime an operator is in the area
