SL Automatic

Home » Products » Automatic Stretch Wrappers » SL Automatic

The SL Automatic Stretch Wrapper comes equipped with Lantech’s patented LeanWrap® features which are designed to maximize productivity and performance:

  • Load Guardian®: Creates, maintains and delivers safe-to-ship loads every time.
  • Pallet Grip®: Locks your load to the pallet.

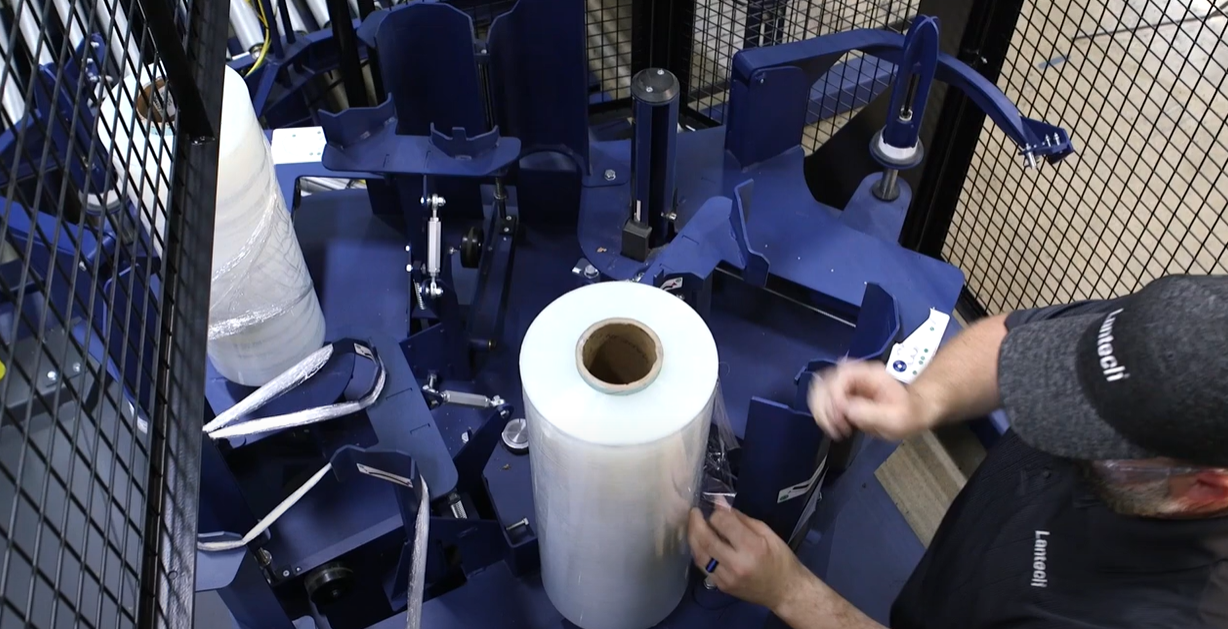

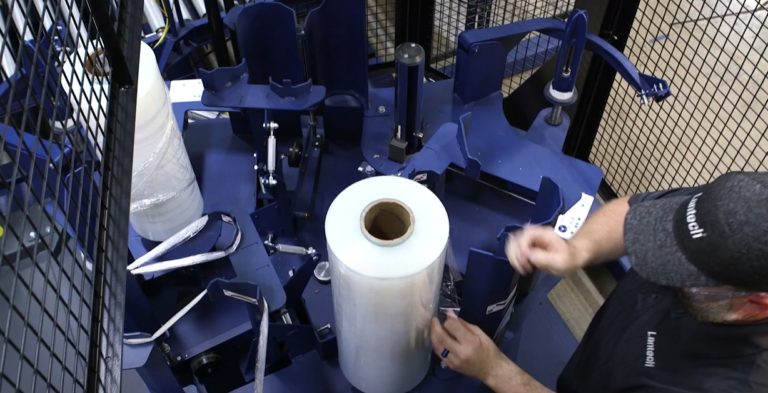

  • Metered Film Delivery® System: The next generation of film delivery systems wraps your loads tighter with less film.
  • Load Seeking Clamp® 4.0: Reduces film breaks.
  • PLd safety rating for electrical components; PLc safety rating for pneumatics.
Download leaflet

Less Waste, Safer Loads!

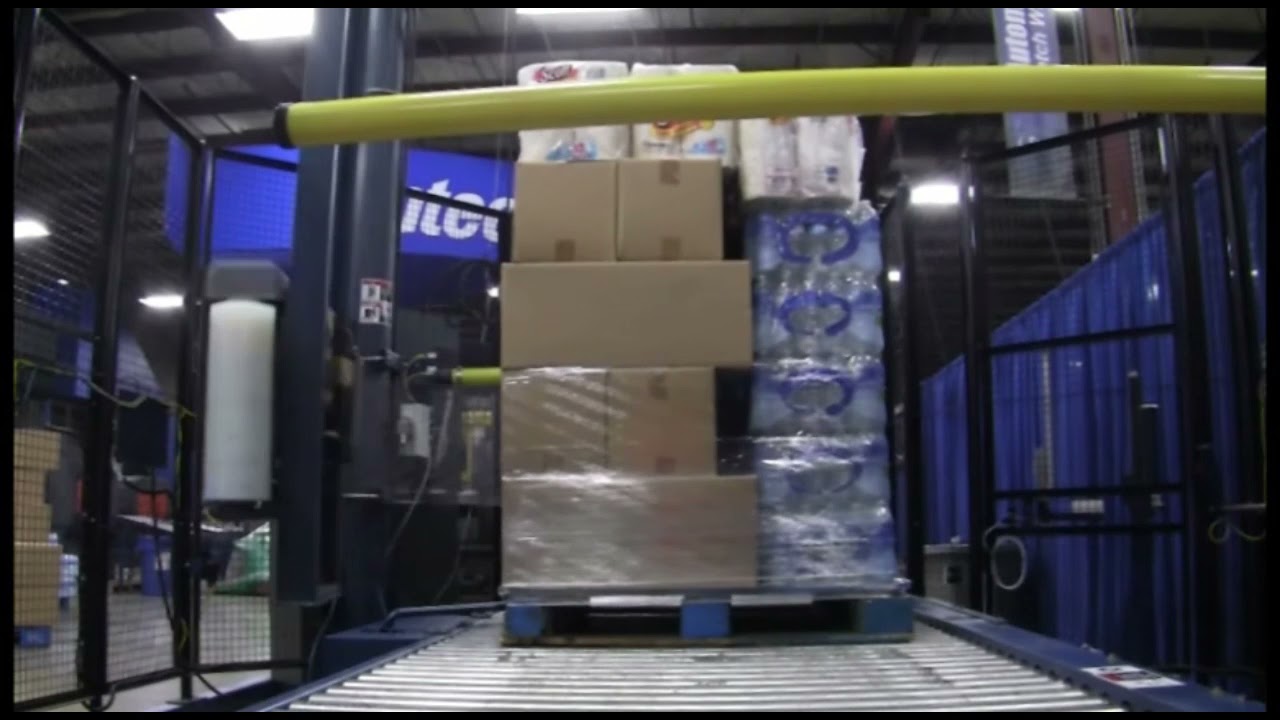

The SL Automatic Stretch Wrapper wraps up to 50 loads per hour, wraps loads tighter with less film and secures the load to the pallet.

The SL Automatic Stretch Wrapper wraps up to 50 loads per hour, wraps loads tighter with less film and secures the load to the pallet.

The SL Automatic Stretch Wrapper wraps up to 50 loads per hour, wraps loads tighter with less film and secures the load to the pallet.

The SL Automatic Stretch Wrapper wraps up to 50 loads per hour, wraps loads tighter with less film and secures the load to the pallet.

Available Options

LINC® | Lantech Intelligent Network Connection®

Upgrade your system with LINC® to monitor machine data and performance from anywhere. LINC® utilizes an ultra-secure connection allowing customers to react to issues before they become problems.

Cold Package
Cold Package option allows efficient operation of stretch wrapper in an environment where the temperature range is +31 to +10 degrees Fahrenheit.

750 mm (30") Metered Film Delivery System
For customer applications where 30” wide film is used.

25 RPM Package
Wrap arm rotation is increased to 25 RPM. Includes additional fencing, visual barriers (Yellow Railroad Gates) at the infeed and exit transition, and a larger machine frame.

35 RPM Package
Wrap arm rotation is increased to 35 RPM. Includes additional fencing, visual barriers (Yellow Railroad Gates) at the infeed and exit transition, and a larger machine frame.

40 RPM Package
Wrap arm rotation is increased to 40 RPM. Includes 9/5/9 standard spaced conveyor layout with variable speed drive control and conveyor speeds of 60-90 FPM (high speed staging). Includes additional fencing and safety light guards.

Top Sheet Dispenser
Two to four mil poly film, 80" wide is automatically applied over the top of load for moisture and dust protection. In-line top sheet dispenser model applies and secures sheet of film over load as it indexes into the wrap zone with no interruption to the wrapping cycle. Mid-wrap top sheet dispenser applies and secures sheet of film over top of load during the wrapping cycle. Load is protected with five-sided coverage.

Conveyor Sections
Available in 5' sections and 10' and 12' wrap zone sections. Close-spaced and tight-spaced conveyor rollers. Standard and non-standard pass heights. Includes safety fencing and additional safety photocells mounted on the safety shield.

Additional Wrap Height Capacity
For wrapping loads which exceed the 2032 mm (80") wrap height capacity of the standard system. Will handle loads up to 2794 mm (110") tall. Increases total operating height to 5486 mm (216") at standard pass height.

Specifications

Performance

Production Speed

Up to 50 Loads/Hr

Maximum Load Size

1372 mm L x 1219 mm W x 2032 mm H
(54" L x 48" W x 80" H)

Minimum Load Size

914 mm L x 914 mm W x 686 mm H
(36" L x 36" W x 27" H)

Maximum Load Weight

Conveyor Capacity

Performance Features

Pallet Grip®

Standard

Load Guardian

Standard

Standard Pre-Stretch

225% (100-300% Available)

Film Capacity

254 mm Diameter, 508 mm Width
(10"D x 20" W)

Film Delivery System

Metered Film Delivery® System

Automation Unit - Film Clamp

Load Seeking Clamp® 4.0

Load Handling

Wrap Arm Drive

VFD Motor Control

Wrap Arm Speed

15 RPM

Weight and Size

Approx. Shipping Weight

1950 kg (4300 lbs)

Service Requirements

Pneumatic

6 Bar, 3-5 cfm @ 80 Psi, Clean, Dry Air

Dedicated Electric Service Req. US

460V-30 Amp-60Hz, 3 Phase Wye w/Ground

Dedicated Electric Service Req. EU

3L-PE-400V-50Hz (No Neutral)

Enclosure

NEMA 12, UL

Control

PLC with HMI

Warranty

Warranty Duration

3 Years, Unlimited Cycles

LINC®️ | Lantech Intelligent Network Connection® Option

LINC®️ – an IoT solution is now available as an option on all LeanWrap Automatic machines.

LINC allows subscribers to monitor machine data and performance in real time, from anywhere. It provides actionable intelligence and advanced analytics to support maintaining and improving system uptime, productivity, load quality, and cost, allowing customers to react to issues before they become problems.

Learn More

Load Guardian®

Load Guardian is Lantech’s patented control system that is based on 50+ years of customer observations. It eliminates the operator guesswork to make it simple to create, maintain and deliver the right containment force for safe-to-ship loads every time.

Learn More

Creates

Load Guardian creates and saves profiles.

  • Intuitively guides users through the profile creation process, using recognizable icons and smartphone-like simplicity, to calculate the right containment force.
  • Eliminates the consequences that can occur when an operator has to make 12 or more decisions to stretch wrap a load.

Maintains

Load Guardian maintains profile standards automatically.

  • Eliminates or minimizes routine operator touches and tweaks with single tap profile selection.
  • Eliminates the consequences that can occur when an operator has to make 12 or more decisions to stretch wrap a load.

Delivers

Load Guardian delivers the right amount of containment force.

  • Provides a knowable, repeatable cost per load.
  • Eliminates the consequences that can occur when an operator has to make 12 or more decisions to stretch wrap a load.

Lantech Exclusives

Pallet Grip®

Avoid product damage by locking the load to the pallet.

Load Guardian®

Create, maintain and deliver safe to ship loads every time!

Metered Film Delivery®

Metered Film Delivery® is the latest advancement in film application. The new algorithms provide precision film application and respond faster to overcome the problems of conventional delivery systems.

Load Seeking Clamp® 4.0

Moves to the load to attach film at the start of the wrap cycle, with three times the holding force of conventional clamps.
