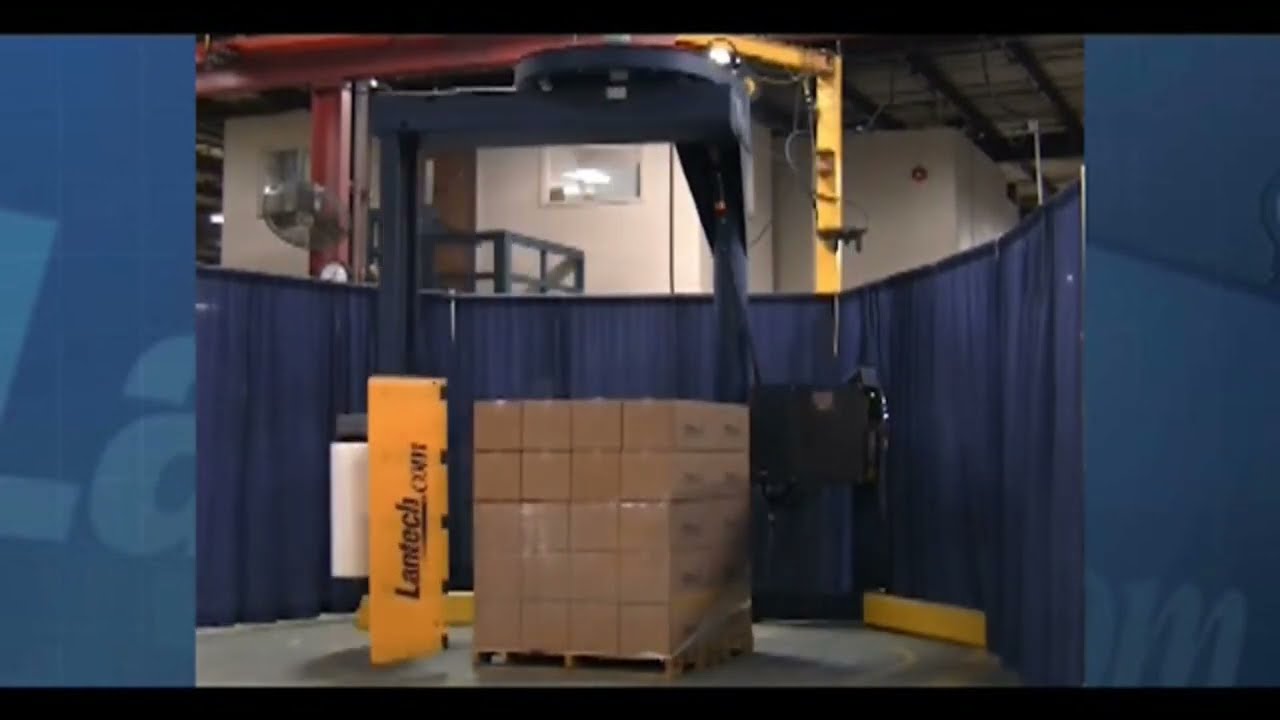

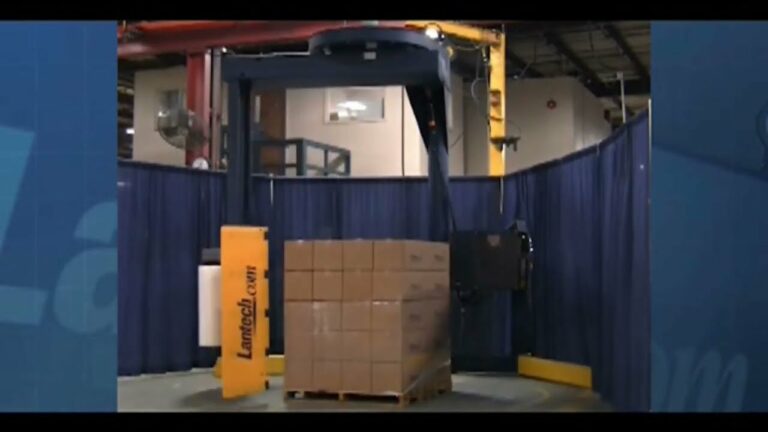

S300
Ideal for very light, very heavy or very unstable loads
- Pallet Grip® locks your load to the pallet.
- Load Doesn’t Rotate.
- No Weight Limitations.
- No Scheduled Preventative Maintenance.
Ideal for warehouses and distribution centers.
- Reliable, safe and proven
- Requires no ramp – load sits on the floor
- Loads don’t have to be rotated
- 3-year unconditional warranty
Specifications
Performance
Peak Production Speed
Up to 25-35 Loads/Hr
Load Size Diagonal (Recommended)
1930 mm (76")
Maximum Load Wrap Height
2032 mm (80")
Maximum Load Weight
Floor Capacity
Performance Features
XT Cut and Clamp 5.0®
Not Available
Auto Film Cut-Off™
Optional
Pallet Grip®
Standard
Intelli-Sensor
Standard
Standard Film Width
500 mm (20")

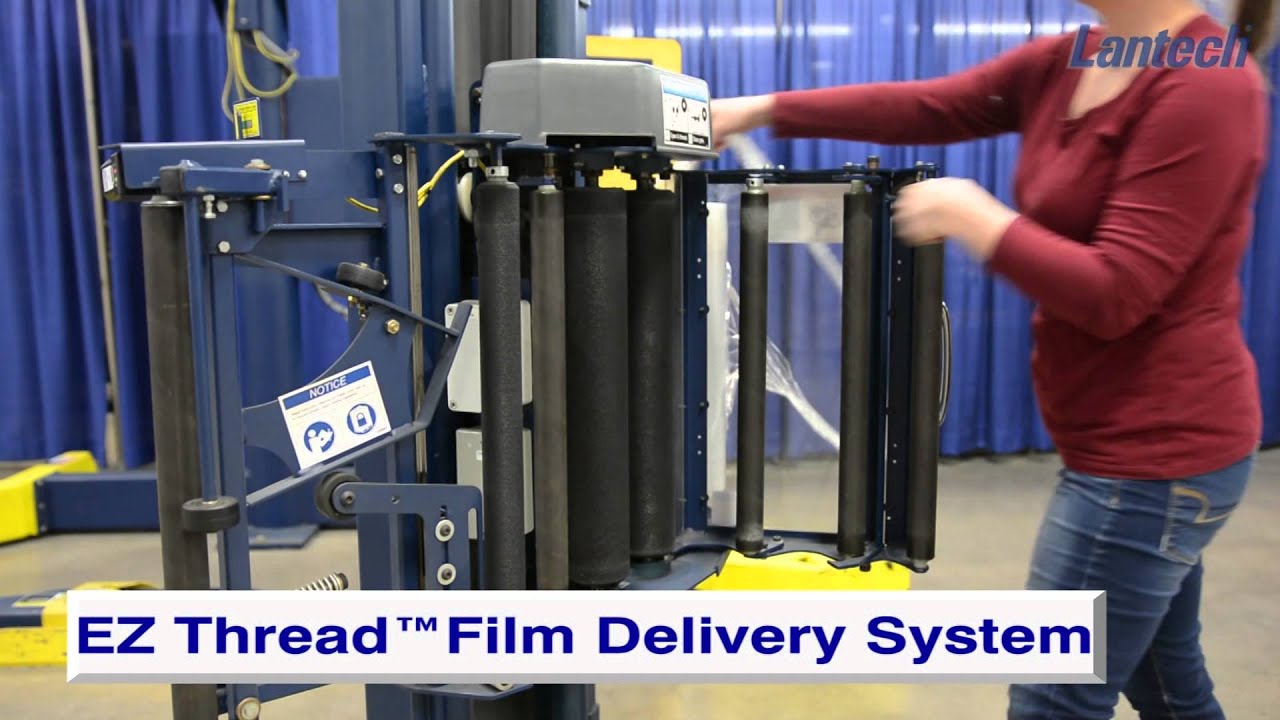

EZ Thread Film Delivery
Standard
Standard Pre-Stretch
200%
Wrap Force
Variable (Electric)
Film Capacity
250 mm Diameter, 500 mm Length
(10" Diameter, 20" Length)
Film Delivery System
Power Roller Stretch
NEMA Type 1 Enclosure
Standard
Load Handling
Wrap Arm Drive
3/4 HP TEFC
Wrap Arm Speed
12 RPM
Wrap Arm Zone
2280 mm (90")
Weight and Size
Approx. Shipping Weight
1361 kg (3000 lbs)
Size
4572 mm L x 2286 mm W x 1981 mm H
(180" L x 90" W x 78" H)
Service Requirements
Pneumatic
Not Applicable
Dedicated Electric Service Req. US
115V - 20 Amp -50-60hz
Dedicated Electric Service Req. EU
1L-PE-220V-50Hz
Warranty
Warranty Duration
3 Years
Lantech Semi-Automatic Stretch Wrapper Exclusives

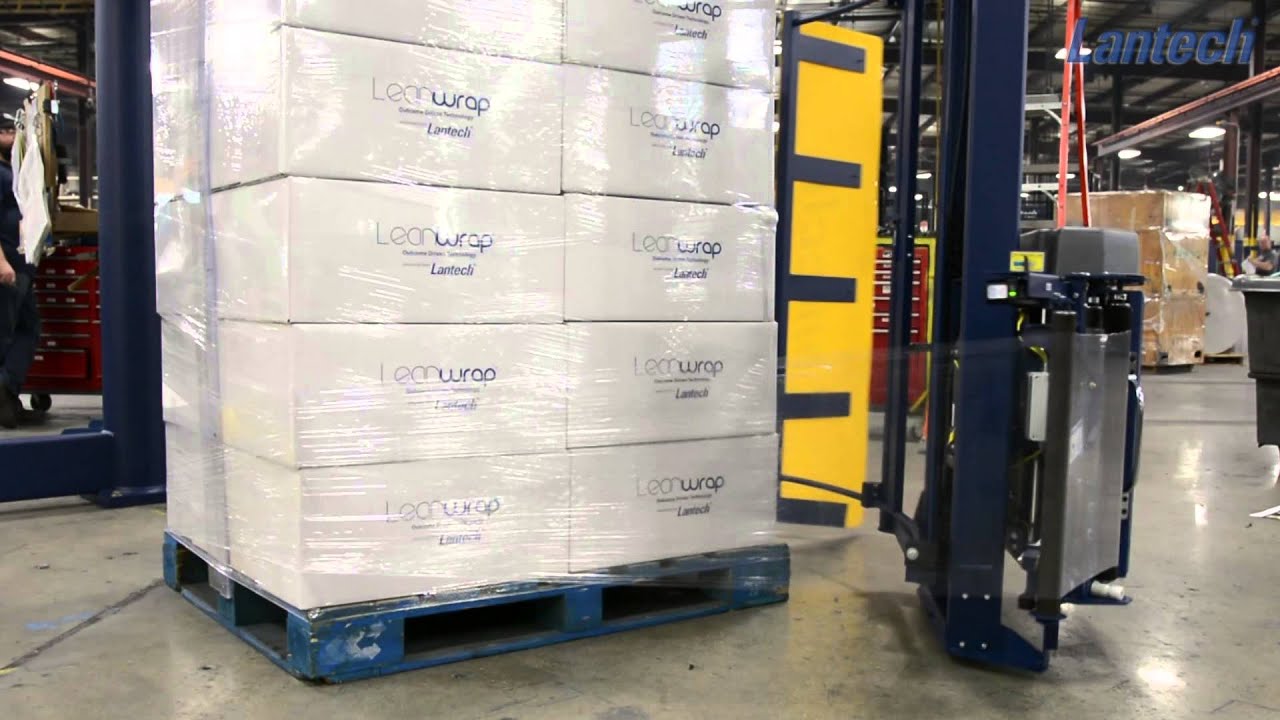

Pallet Grip®
Avoid product damage by locking the load to the pallet.
XT Cut and Clamp®
Improve productivity by saving two minutes of labor per load.
Click-n-Go® Remote
Start the stretch wrapper without getting off the forklift.
