RL Automatic

LINC^® | Lantech Intelligent Network Connection^®

Upgrade your system with LINC^® to monitor machine data and performance from anywhere. LINC^® utilizes an ultra-secure connection allowing customers to react to issues before they become problems.

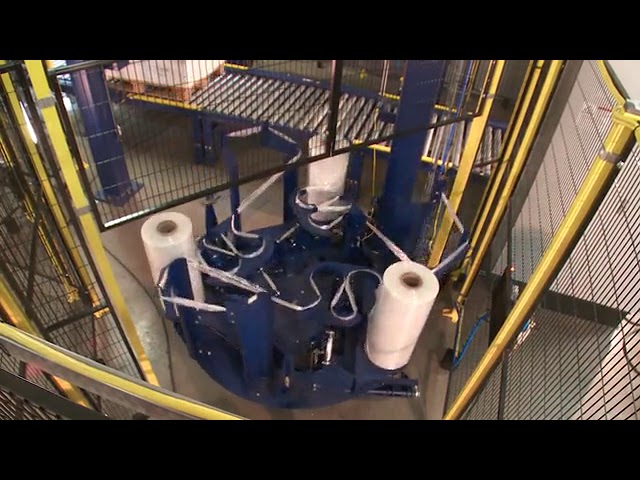

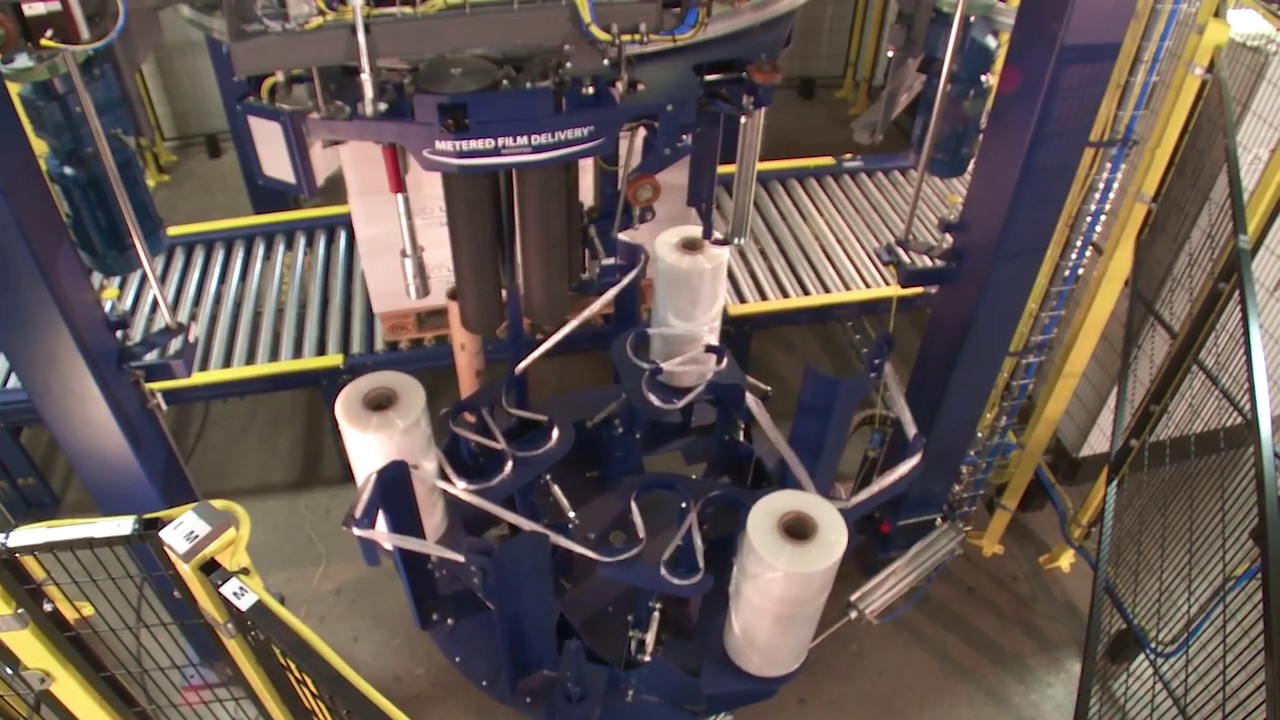

The ARC - Auto Roll Change Option
A carousel that holds up to three rolls of film and threads it to the film delivery system, enabling the wrapper to automatically change film rolls. The ARC provides separate access gates that allows film loading while the wrapper is in fully automatic operation. Design supports 1321 mm (52”) effective width conveyor only, and is not compatible with temperatures at 0 C (32 F) and below.

Cold Package
Cold Package option allows efficient operation of stretch wrapper in an environment where the temperature range is -1 to -13 degrees Celsius (+31 to +10 degrees Fahrenheit).

Top Sheet Dispenser
Two to four mil poly film, 80" (2032 mm) wide is automatically applied over the top of load for moisture and dust protection. In-line top sheet dispenser model applies and secures sheet of film over load as it indexes into the wrap zone with no interruption to the wrapping cycle. Mid-wrap top sheet dispenser applies and secures sheet of film over top of load during the wrapping cycle. Load is protected with five-sided coverage.

Conveyor Sections
Available in 5' (1524 mm) sections and 10' (3048mm) and 12' (3658 mm) wrap zone sections. Close-spaced and tight-spaced conveyor rollers. Standard and non-standard pass heights. Includes safety fencing and additional safety photocells mounted on the safety shield.

Additional Wrap Height Capacity
For wrapping loads which exceed the 80" (2032 mm) wrap height capacity of the standard system. Will handle loads up to 110" tall (2794 mm). Increases total operating height to 216" (5487 mm) at standard pass height.
