QL Automatic

Home » Products » Automatic Stretch Wrappers » QL Automatic

The QL Automatic Stretch Wrapper comes equipped with Lantech’s patented LeanWrap® features which are designed to maximize productivity and performance:

  • Load Guardian®: Creates, maintains and delivers safe-to-ship loads every time.
  • Pallet Grip®: Locks your load to the pallet.
  • Metered Film Delivery® System: Wraps your loads tighter with less film.
  • Load Seeking Clamp® 4.0: Reduces film breaks.
Download leaflet

Less Waste, Safer Loads!

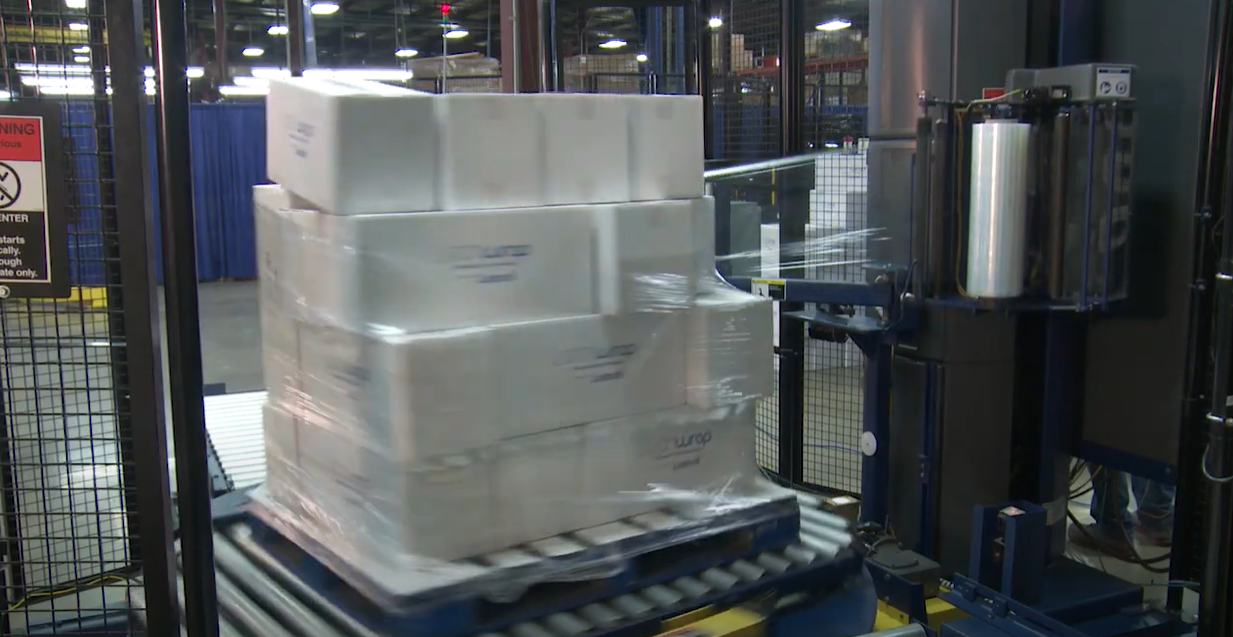

The QL Automatic Stretch Wrapper wraps up to 45 loads per hour, wraps loads tighter with less film and secures the load to the pallet.

Available Options

LINC® | Lantech Intelligent Network Connection®

Upgrade your system with LINC® to monitor machine data and performance from anywhere. LINC® utilizes an ultra-secure connection allowing customers to react to issues before they become problems.

Extended Wrap Height
Increase the wrap heights of your loads. Replace the 2032 mm (80") mast with a 2794 mm (110") mast. Increase the speed of the turntable to 25 rpm.

High Speed Package
Increase the speed of the turntable to 25 rpm.

Load Seeking Clamp
Eliminates the beginning film tail. Replaces the jam clamp with a vacuum clamp that pivots out to the load.

6,000 LB Capacity Conveyor
Increase the weight capacity of the turntable to 2721 kg (6000 lbs).

Cold Package
Cold Package option allows efficient operation of stretch wrapper in an environment where the temperature range is 0 to -12 degrees Celsius (+31 to +10 degrees Fahrenheit).

Modular Electric Top Platen
Stabilizes tall, lightweight or unstable loads during the wrap cycle.

Turntable Washdown
Use water at "city pressure" to clean the turntable. Make sure that the water can drain from the area.

Specifications

Performance

Production Speed

Up to 45 Loads/Hr

Maximum Load Size

1372 mm L x 1219 mm W x 2336 mm H
(54" L x 48" W x 92" H)

Minimum Load Size

914 mm L x 914 mm W x 610 mm H
(36" L x 36" W x 24" H)

Maximum Load Weight

1814 kg
(4000 lbs)

Performance Features

Pallet Grip®

Standard

Load Guardian

Standard

Standard Film Width

500 mm (20")

Standard Pre-Stretch

225% (100-300% Available)

Wrap Force

Electronic Control

Film Capacity

254 mm Diameter, 508 mm Width
(10" D x 20" W)

Film Delivery System

Metered Film Delivery System®

Automation Unit - Film Clamp

Reach Arm with Impulsed Hot Wire Film Cutter

Load Handling

Turntable Speed (Variable)

15 RPM

Turntable Size

1321 mm Effective Width 2057 mm Diameter
(52" EW, 81" D)

Turntable Drive

0.75 kW (1 hp) 208-230/460 VAC Inverter Motor w Brake

Weight and Size

Approx. Shipping Weight

3289 kg (7250 lbs)

Size

5232 mm L x 3868 mm W x 3074 mm H
(206" L x 153" W x 121 1/8" H)

Service Requirements

Pneumatic

85-142 lpm @ 6 Bar, 3-5 cfm @ 80 Psi, Clean Dry Air

Dedicated Electric Service Req. US

480 V, 3ph, 60Hz, Wye w/ Ground

Dedicated Electric Service Req. EU

3L-PE-400V-50Hz (No Neutral)

Enclosure

NEMA 12 Enclosure, UL Listed

Control

PLC wth HMI Touch Screen

Warranty

Warranty Duration

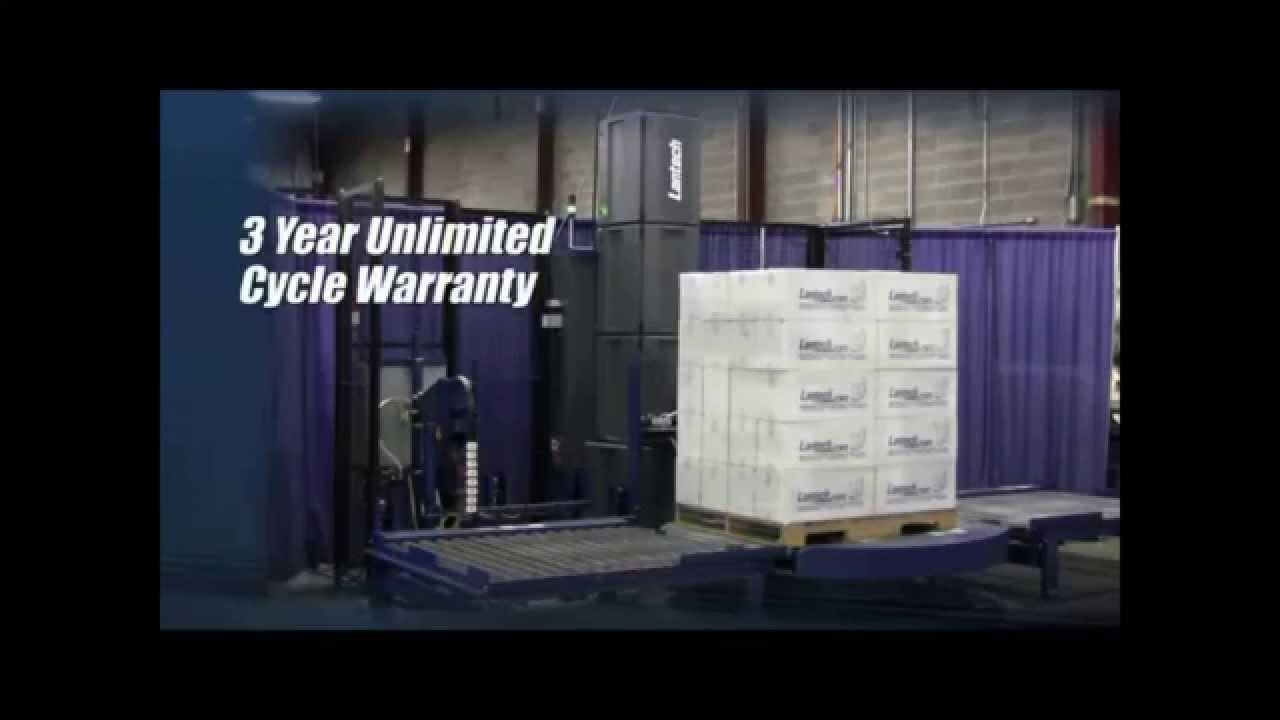

3 Years, Unlimited Cycles, All Components Covered

LINC®️ | Lantech Intelligent Network Connection® Option

LINC®️ – an IoT solution is now available as an option on all LeanWrap Automatic machines.

LINC allows subscribers to monitor machine data and performance in real time, from anywhere. It provides actionable intelligence and advanced analytics to support maintaining and improving system uptime, productivity, load quality, and cost, allowing customers to react to issues before they become problems.

Learn More

Load Guardian®

Load Guardian is Lantech’s patented control system that is based on 50+ years of customer observations. It eliminates the operator guesswork to make it simple to create, maintain and deliver the right containment force for safe-to-ship loads every time.

Learn More

Creates

Load Guardian creates and saves profiles.

  • Intuitively guides users through the profile creation process, using recognizable icons and smartphone-like simplicity, to calculate the right containment force.
  • Eliminates the consequences that can occur when an operator has to make 12 or more decisions to stretch wrap a load.

Maintains

Load Guardian maintains profile standards automatically.

  • Eliminates or minimizes routine operator touches and tweaks with single tap profile selection.
  • Eliminates the consequences that can occur when an operator has to make 12 or more decisions to stretch wrap a load.

Delivers

Load Guardian delivers the right amount of containment force.

  • Provides a knowable, repeatable cost per load.
  • Eliminates the consequences that can occur when an operator has to make 12 or more decisions to stretch wrap a load.

Lantech Exclusives

Pallet Grip®

Avoid product damage by locking the load to the pallet.

Load Guardian®

Create, maintain and deliver safe to ship loads every time!

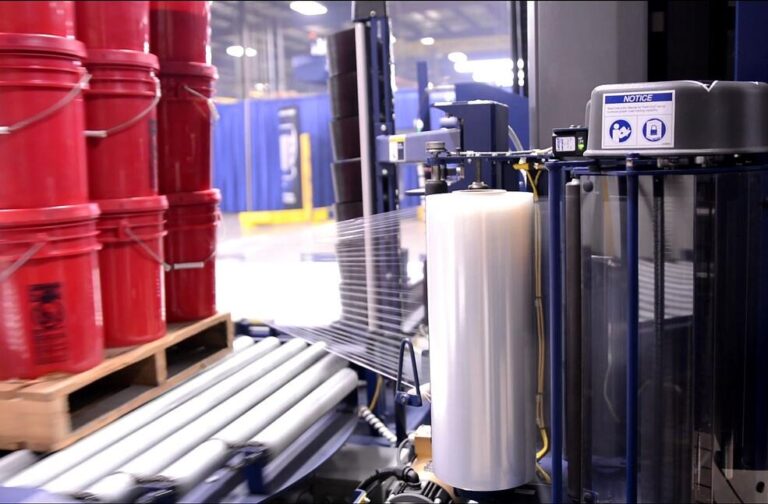

Metered Film Delivery®

Metered Film Delivery® is the latest advancement in film application. The new algorithms provide precision film application and respond faster to overcome the problems of conventional delivery systems.

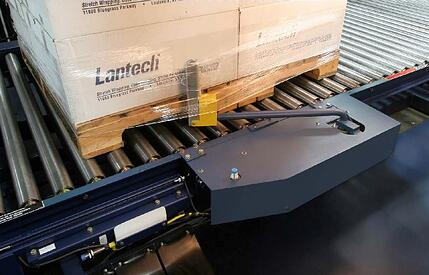

Load Seeking Clamp® 4.0

Moves to the load to attach film at the start of the wrap cycle, with three times the holding force of conventional clamps.
