TE C

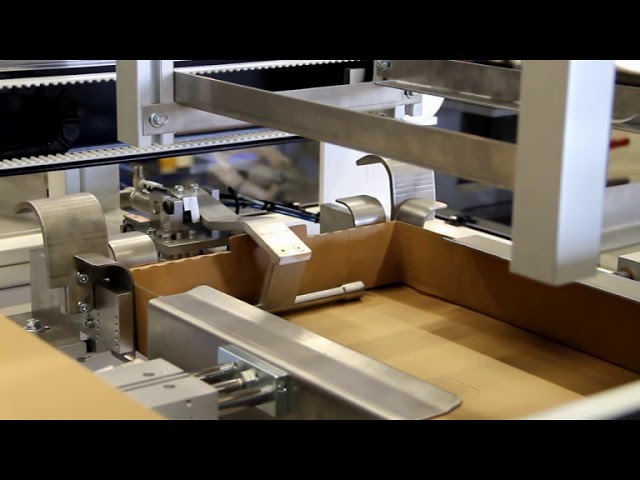

The TE C is our advanced rolled end tray erector, meticulously crafted to effortlessly assemble rolled end trays for a refined and secure packaging solution.

  • Communicates easily with other machines in the packaging line.
  • Ergonomic easy access magazine for clean release of each blank from the magazine.
  • Flexible to handle different tray formats.

Available Options

Beacon
Colored lights indicate the status of the machine, blanks supply, and tape or hot melt supply.

High Speed
Increases speed to maximum of 17 trays per minute. Please contact Lantech for details.

Communication
Various communication configurations possible. Please contact Lantech for details.

Stainless Steel Frame or Components
Please contact Lantech for details.

Exit Height Extension
The exit height can be extended.

Acoustic Signal
An alarm sounds to indicate the presence of a fault condition.

Custom Options
Many options available for case types and dimensions, speeds, closing methods, machine frame and magazine, and machine performance data communications are available. Please contact Lantech Customer Support if your requirements are not satisfied by the options published on this page.

Specifications

Performance

Throughput Speed

Up to 17 Trays/Minute

Tray Size Minimum (Outside Dimensions)

280 mm L x 200 mm W x 50 mm H
( 11" L x 7 9/10" W x 2" H)

Tray Size Maximum (Outside Dimensions)

600 mm L x 400 mm W x 150 mm H
(23 5/8" L x 15 3/4" W x 5 9/10" H)

Machine Data

Magazine infeed Capacity

280 Blanks (approximate)

Weight

725 kg (1600 lbs)

Dimensions

2730 mm L x 1780 mm W x 1800 mm H
(107 1/2" L x 70" W x 70 9/10" H)

Service Requirements

Air Supply

6 Bar (80 psi)

Dedicated Electric Service Req. US

230V, 3ph, 60Hz, Wye w/ Ground

Dedicated Electric Service Req. EU

3L-PE-400V-50 Hz-Neutral

Tray Criteria

Tray Types

Rolled End Trays

Wave Types

E Wave or Combinations

Wall Types

Single Wall (test for multiple wall)

Tray Closure

Tray Closure

Rolled End Tray Tabs

Warranty

Warranty Duration

3 Years, Unlimited Cycles
