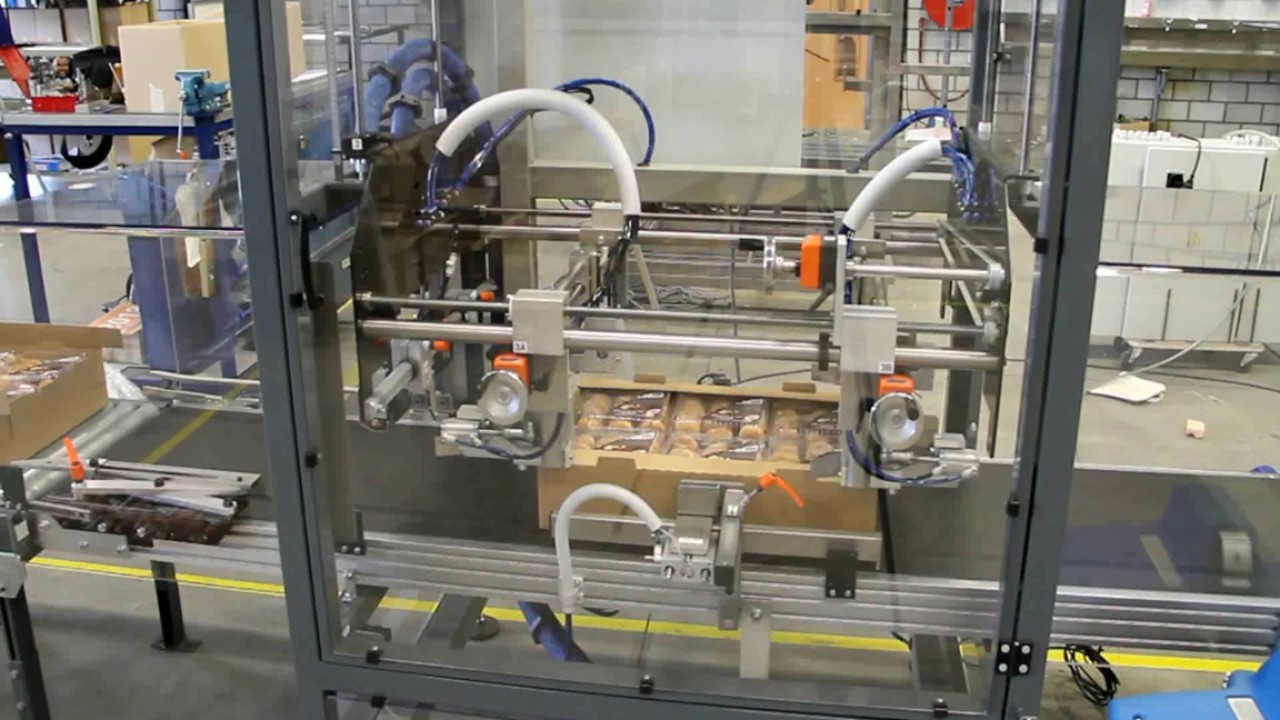

SC1000
The cutting-edge SC1000 is meticulously designed to seamlessly fold and glue stacking edges, ensuring optimal stability of the tray or case.
- Speed up to 18 trays/cases per minute.
- Can be integrated in a tray erector or lid applicator.
- Compact, small footprint
Lantech Lid Applicators produce square packages
Lantech Lid Applicators are designed for a wide variety of lid styles and sizes. They feature an ergonomic and safe design, and precise lid forming and placing. With square lids your products are better protected from damage.
Specifications
Performance
Throughput Speed
Up to 18 Lids/Minute
Lid Size Minimum (Outside Dimensions)
200 mm L x 200 mm W x 100 mm H
(7 7/8" L x 7 7/8" W x 4" H)
Lid Size Maximum (Outside Dimensions)
600 mm L x 400 mm W x 400 mm H
(23 5/8" L x 15 3/4" W x 15 3/4" H)
Machine Data
Weight
550 kg (1200 lbs.)
Dimensions
2500 mm L x 1490 mm W x 1800 mm H
(98 7/16" L x 58 11/16" W x 70 7/8" H)
Blank Magazine Capacity
N/A
Service Requirements
Air Supply
6 Bar (80 psi)
Dedicated Electric Service Req. US
230V, 3ph, 60Hz, Wye w/ Ground
Dedicated Electric Service Req. EU
3L-PE-400V-50Hz-Neutral
Lid Criteria
Lid Types
Basic & Display Trays
Wave Types
B, C, E Wave or Combinations
Wall Types
Single & Double Wall
Stacking Edge Closure
Closing Method
Robatech/Nordson
Warranty
Warranty Duration
3 Years, Unlimited Cycles
