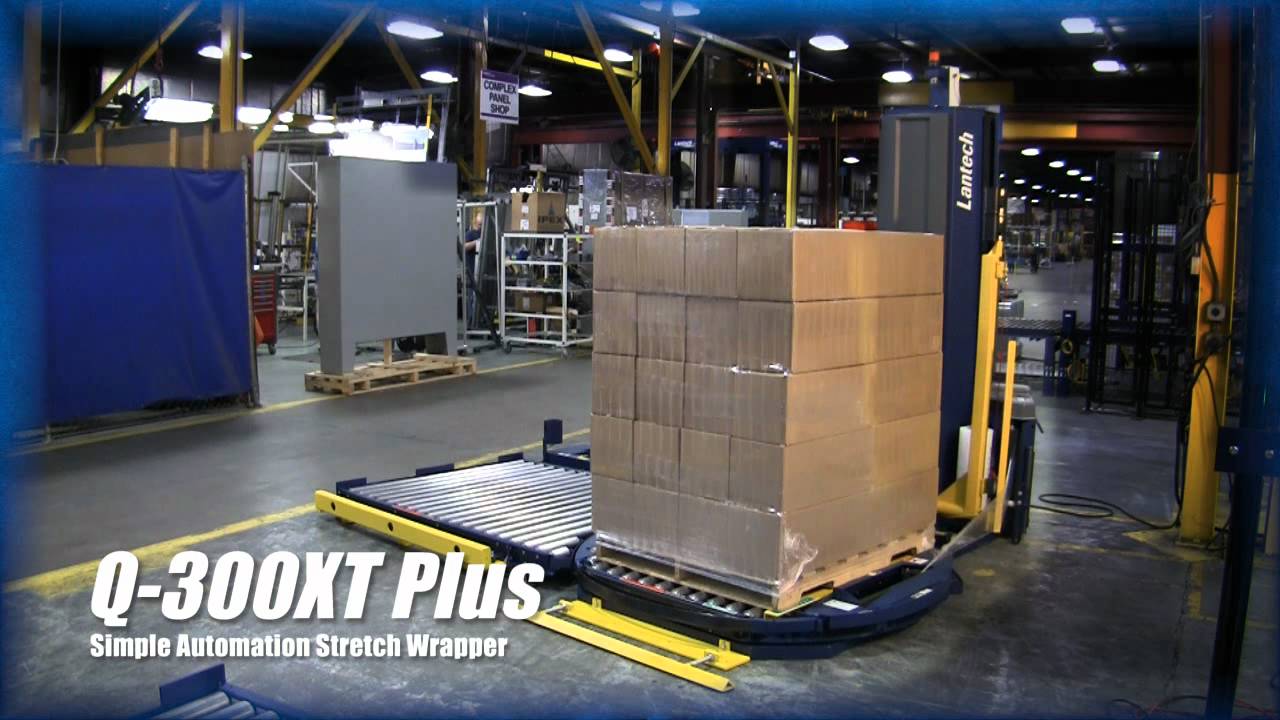

Q300XT Plus
All of the features and benefits of the Q-300XT with even more automation.
- Wraps load and moves it out of the way for the next load.
- Eliminates double-handling
- Standard load-on-conveyor configuration accommodates two pallets.
- Add additional conveyor sections to accommodate up to four pallets.
- No scheduled preventative maintenance.
Drop one load off. Pick one load up. No double handling.
Specifications
Performance
Peak Production Speed
Up to 30 Loads/Hr
Load Size Diagonal (Recommended)
1651 mm (65")
Maximum Load Wrap Height
1905 mm (75")
Maximum Load Weight
1814 kg (4000 lbs)
Performance Features
XT Cut and Clamp 5.0®
Standard
Auto Film Cut-Off™
Not Applicable
Pallet Grip®
Optional
Load Guardian
Not Available
Photo-Eye
Intelli-Sensor
Standard Film Width
500 mm (20")
EZ Thread Film Delivery
Standard
Standard Pre-Stretch
200%
Wrap Force
Variable (Electric)
Film Capacity
250 mm (10") Roll Diameter
Film Delivery System
Power Roller-Stretch Plus
EZ Weigh Integrated Scale
Not Available
Load Handling
Turntable Speed (Variable)
12 RPM
Turntable Size
1651 mm (65") Diameter
Turntable Drive
1 HP TEFC
Weight and Size
Approx. Shipping Weight
1270 kg (2800 lbs)
Size
3048 mm L x 1727 mm W x 2489 mm H
(120" L X 68" W X 98" H)
Service Requirements
Pneumatic
Not Applicable
Dedicated Electric Service Req. US
120V-20 Amp-50/60hz
Dedicated Electric Service Req. EU
1L-220V-16AMP-50Hz
Warranty
Warranty Duration
5 Years, Unlimited Cycles, All Components Covered
Lantech Semi-Automatic Stretch Wrapper Exclusives
Pallet Grip®
Avoid product damage by locking the load to the pallet.
XT Cut and Clamp®
Improve productivity by saving two minutes of labor per load.
EZ Weigh® Integrated Scale
Eliminate double handling and add to your quality control processes.
Click-n-Go® Remote
Start the stretch wrapper without getting off the forklift.
