MFC1000

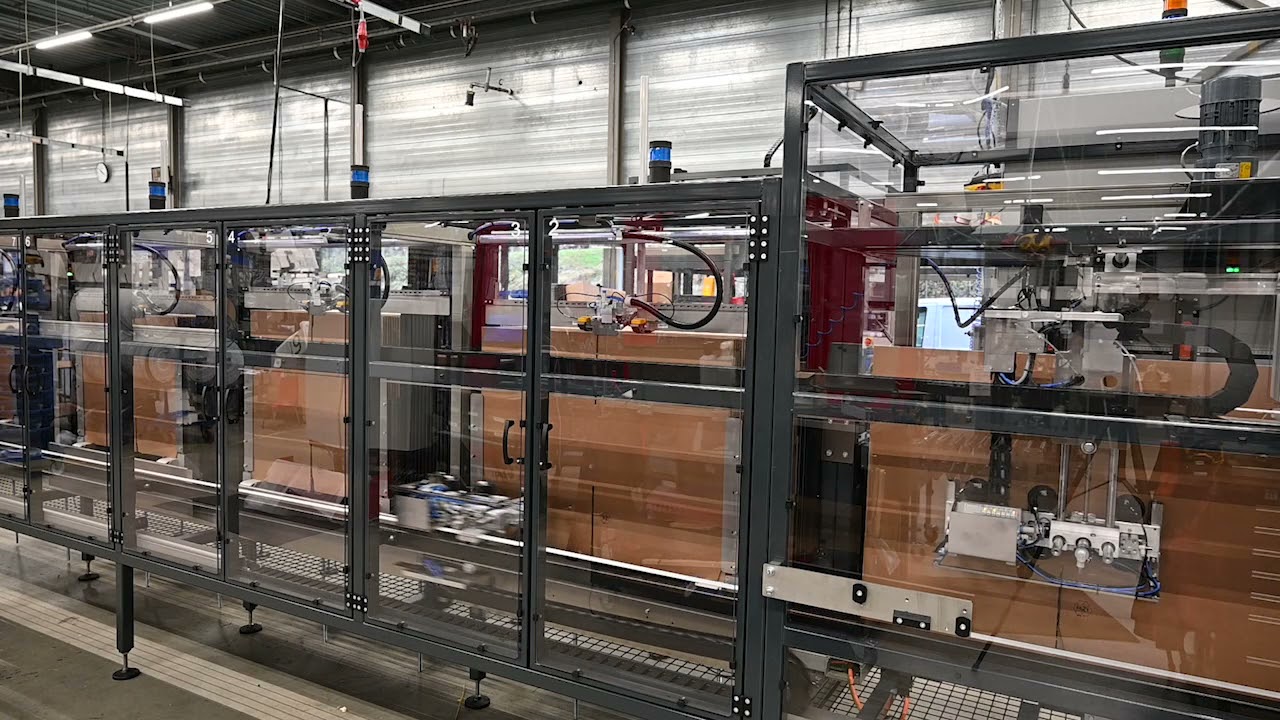

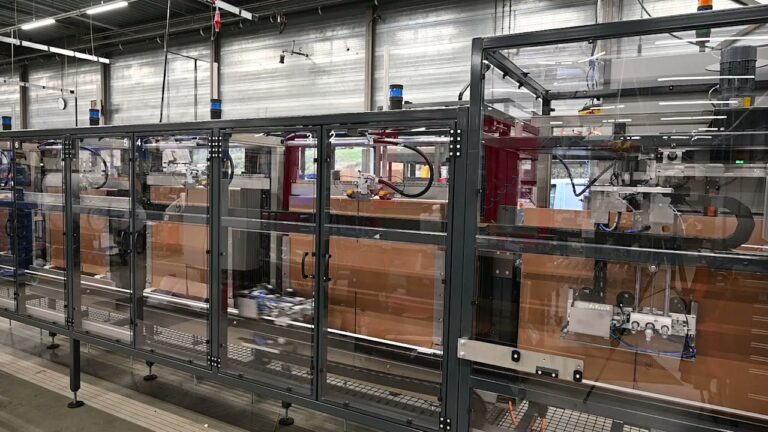

The weight and size of a case have a major impact on transport costs. The Multi-Format Case Erector delivers the size of box required on demand.

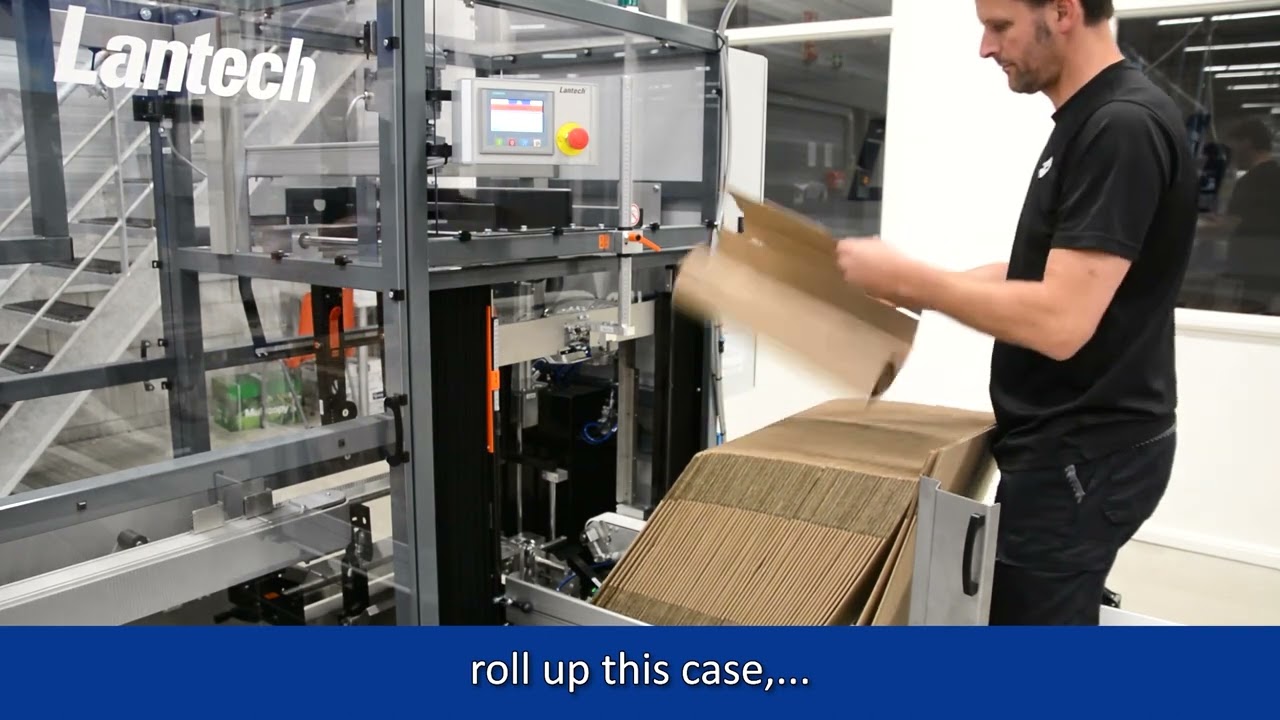

  • Can be equipped with up to 4 blank magazines, depending on the number of case sizes required.
  • Ideally suited for E-commerce and logistics environments.
  • Communicates easily with other machines in the packaging line.

Available Options

LINC® | Lantech Intelligent Network Connection®

Upgrade your system with LINC® to monitor machine data and performance from anywhere. LINC® utilizes an ultra-secure connection allowing customers to react to issues before they become problems.

Non-Standard Case Dimension
Machine can be modified for a variety of case dimensions. Please contact Lantech for details.

High Speed
Increases speed to maximum of cases per minute. Please contact Lantech for details

Stainless Steel Frame or Components
Please contact Lantech for details.

Specifications

Performance

Throughput Speed

10-18 Cases/Minute (options and application can change speed)

Case Size Minimum (Outside Dimensions)

200 mm L x 150 mm W x 150 mm C
(7 7/8" L x 5 7/8" W x 5 7/8" C)

Case Size Maximum (Outside Dimensions)

500 mm L x 325 mm W x 520 mm C
(19 5/8" L x 12 3/4" W x 20 1/2" C)

Machine Data

Magazine infeed Capacity

Not Applicable

Weight

925 kg
(2040 lbs)

Dimensions

4345 mm L x 2030 mm W x 1980 mm H
(171" L x 80" W x 78" H)

Outfeed height

600 mm +/- 30 mm
(23 5/8" +/- 1 1/8")

Service Requirements

Air Supply

6 Bar (80 Psi)

Dedicated Electric Service Req. US

230V, 3ph, 60Hz, Wye w/Ground

Dedicated Electric Service Req. EU

3L-PE-400V-50Hz-Neutral

Case Criteria

Case Types

RSC, HSC, FEFCO 0200/0201

Flute Types

B, C, E or combinations

Wall Types

Single & Double Wall

Top Seal

Tape

Lantech TH-Series Tape Head

Hot Melt

Robatech/Nordson

Warranty

Warranty Duration

3 Year
